Automotive Air Duct

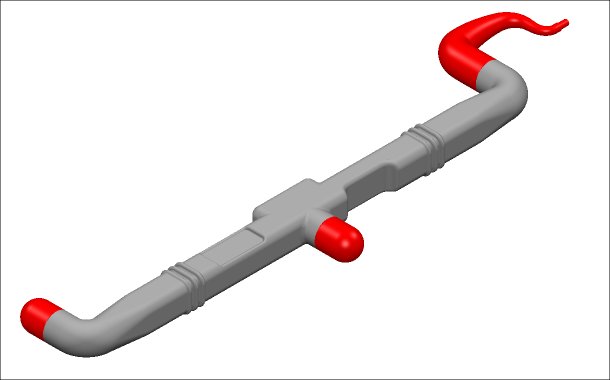

Supplied by the customer on CD-Rom in Iges format. Part was checked for modelling errors before being orientated into tool line. The lost heads and blow point were then added (red areas of image). Once the split line was created the nip edge and all runoffs were modelled. all CNC machine paths were then programmed before being compressed and emailed back to the customer, along with a VDA file of the tool surfaces.
